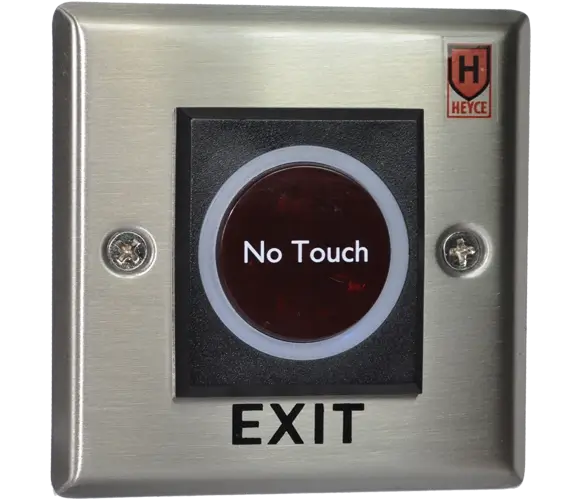

HEYCE No Touch IR Exit Switch

No Touch IR Exit Buttons incorporates innovative touch free sensor technology using infrared sensors. With a several contact configuration options, HEYCE No Touch IR Exit Switches are fully compatible with virtually any access control door controller to work as door release switch mechanism.

HT NTDR

  • No Touch System
  • Motion Detection Release Mechanism
  • Infrared (IR) Sensors
  • Ideal for Hygienic Environs
  • Dual color LED
  • Stainless steel mounting
  • Quick connect com ports
ENQUIRE
  • Uses IR Sensor technology; device is activated with hand movement in front of the IR sensor.
  • Works with all electrical access control door locking mechanisms like electric locks/strikes, magnetic locks, automatic door operators etc.
  • Ideal for sanitary area access such as cleanrooms, bathrooms, food processing, hospitals and labs.
  • Sensing Range up to 7.87" (20 cm)
  • Robust stainless steel plate mounting
  • Dual color LED illuminated sensor: Blue /Red color indicates Inactive/Active status.
  • Quick connect contact points for easy & secure installation.
  • CE, ISO9001, Certified
Input 25mA (standby); 55mA (Active) @ 12 Volt DC
Output 1-relay output, 3 Amp Dry Contact
Connectors NO, NC, COM, +12V & GND
Activation Time 1 second or as long as sensor is triggered
LED Color Standby BLUE; Active RED
Range 7.87" (20 cm)
Weight 85g
Dimensions (85 X 85 X 28) mm
Operating temp -20~+50
Mechanical Life 500,000 Operations.
Humidity Tolerance 0-95% (non- condensing)
